Frequently asked questions
FAQs
1 - How do I order ChemDrain?
Simply download the order form found on our website, fill in your quantities and email to orders@primarkinc.com. One of our representatives will then contact you with a quote.
2 - What is ChemDrain made of?
ChemDrain is made of a CPVC (Chlorinated Polyvinyl Chloride) a highly chemical resistant resin called Corzan and has been around for many years and used in many high-profile projects in the US.
3 - What are the key advantages of using ChemDrain vs other chemical and acid waste piping systems available in Canada?
- Good broad-based resistance to many types of chemicals
- It can handle chemical waste up to 104 degrees Celsius which is higher than polypropylene
- It has superior flame and smoke properties to FRPP making it safe to use in a Plenum.
- It is simple to install because it is a solvent cement pipe and fitting system which requires no special training or proprietary fusion equipment.
4 - Is ChemDrain CSA approved for use in Canada?

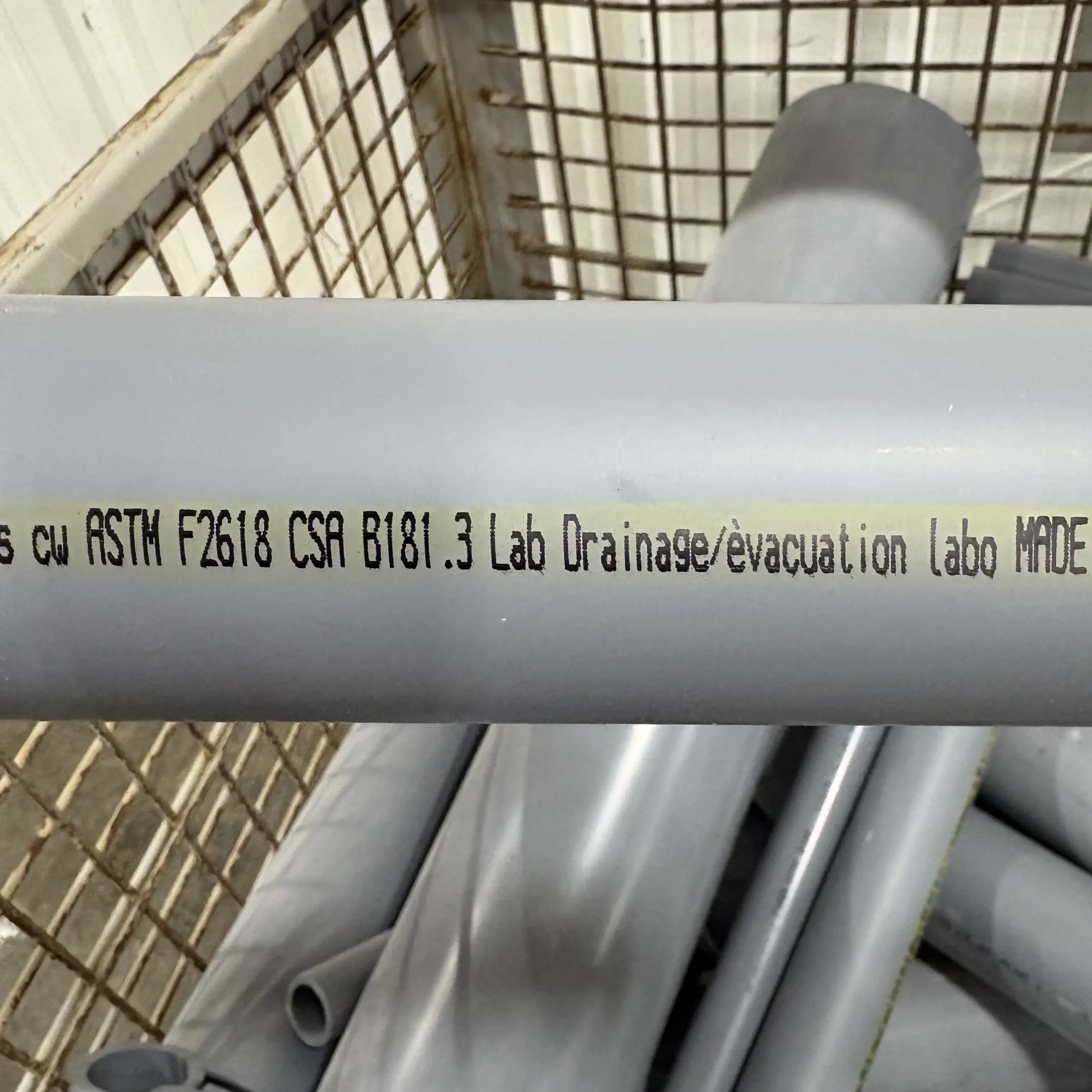

- Yes, ChemDrain is certified to meet CSA standard B181.3 through NSF International which covers requirements for polyolefin laboratory drainage systems for corrosive applications. Requirements for materials, pipe, and fittings are included.
- It is also referenced in the Plumbing Code of Canada
5 - Can it be used in a Plenum?
Yes, it has been tested to CAN/ULC S 102.2 and meets the flame spread and smoke developed rating referenced within the National Plumbing Code of Canada for a materials suitable for use in Plenums.
6 - Can you easily transition from an existing system to ChemDrain?
- Yes, ChemDrain offers transitional fittings that will easily transition to and from any other existing acid waste piping system. It allows for easy cut-in and connection to other materials such as.
- Glass
- High Silicon Iron
- PPL
- PVDF
- Any Schedule 40 or IPS pipe
7 - Do you require any special tooling or process to join this pipe?
No, that’s what makes this system so special. It uses a solvent cement made from the same resin as the pipe, called Corzan which is applied to the pipe and fitting to create a chemical fusion. If you can solvent cement regular PVC pipe you can use ChemDrain. This proprietary solvent cement can be ordered through Primark when ordering your pipe and fittings.
8 - How do I know how much solvent cement to order?
You can easily calculate this by using the information found on page 31 of the ChemDrain Technical and Installation Manual. The chart lists the avg. number of joints per quart of cement for each pipe size. This information is also found in the Charlotte Pipe Tech Tools App.
9 - Does it require primer when joining pipe with the solvent cement?
No, except for pipe over 6”-8” in diameter or pipe that will be in extreme hot, cold or wet conditions.
10 - Is ChemDrain suitable for continuous waste as well as diluted forms of chemicals?
Chem Drain is highly resistant to many chemicals in both diluted and continuous waste. Refer to our chemical resistance chart found on our website or the chemical resistance guide in the Charlotte Tech Tool App for more information on suitability for specific chemicals.
11 - How can I easily find out if ChemDrain is suitable to use with a specific chemical?
ChemDrain has a comprehensive list of chemical suitability’s found as a downloadable document on our site or in our Technical and Installation Manual. You can also search thousands of chemicals and their suitability in the Charlotte Pipe Tech Tools App.
12 - Where is it ideal to use this pipe?

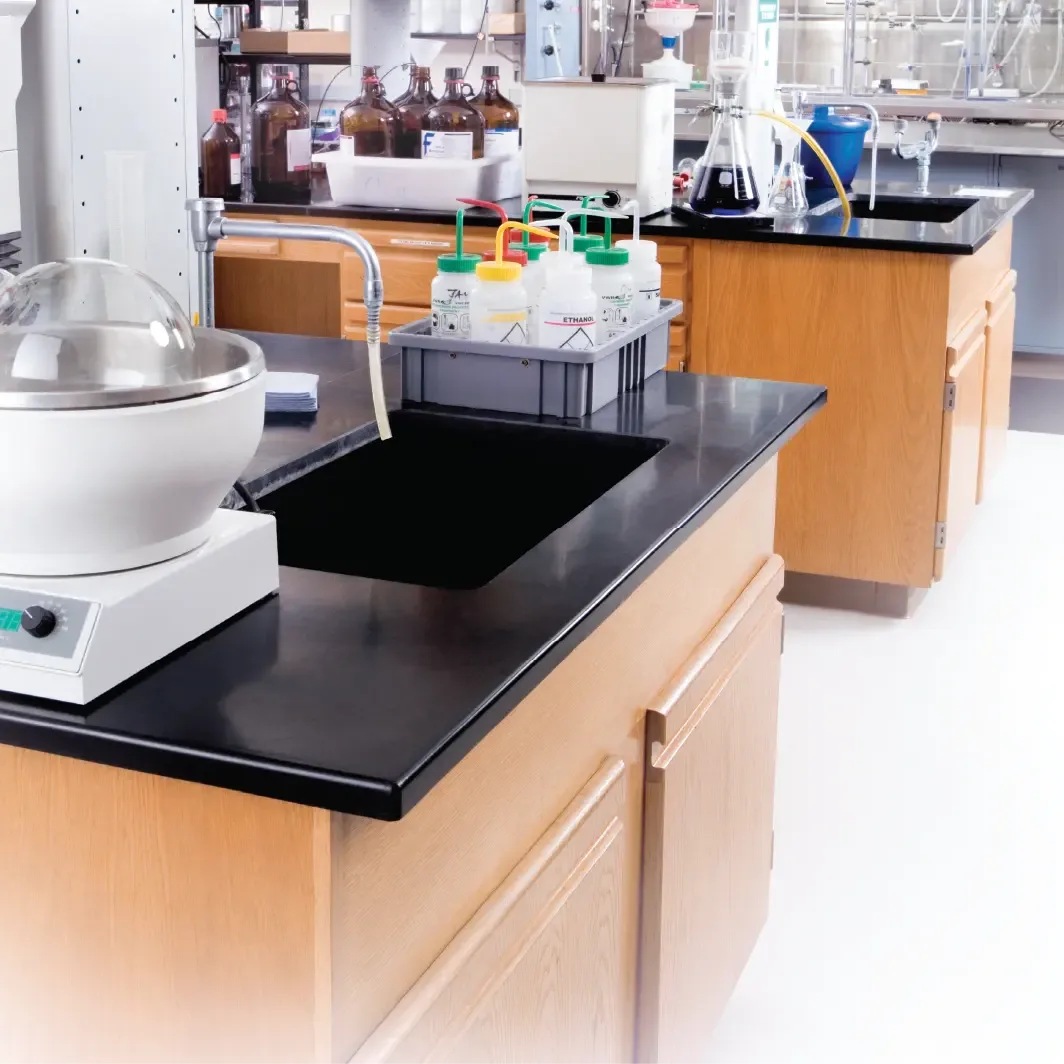

- Laboratories
- Hospitals/Medical
- K-12 schools, colleges and universities
- Research facilities
- Pharmaceutical
- Paper Mills
- Biotech facilities and anywhere chemicals may be disposed of in drains.
13 - Is the cost to install competitive with other chemical and acid waste products found in Canada?
- It is highly competitive to the cost of polypropylene which is the cheaper of the options available here in Canada. The biggest advantage over other products is the simplicity to install saving time and labor costs.
Contact Primark at 1-800-528-0703 or sales@primarkinc.com to discuss further benefits.
14 - Do you require special drains?
You will require drains that are chemical resistant as well.
Contact Primark at 1-800-528-0703 or sales@primarkinc.com for a list of resources.
15 - Is ChemDrain subject to US Tariffs?
No, these products are not subjected to tariffs because they are part of the North American Trade Agreement.
Technical manual
Technical manual
Submittal package
Submittal package
Chemical resistance suitability list
Chemical resistance suitability list

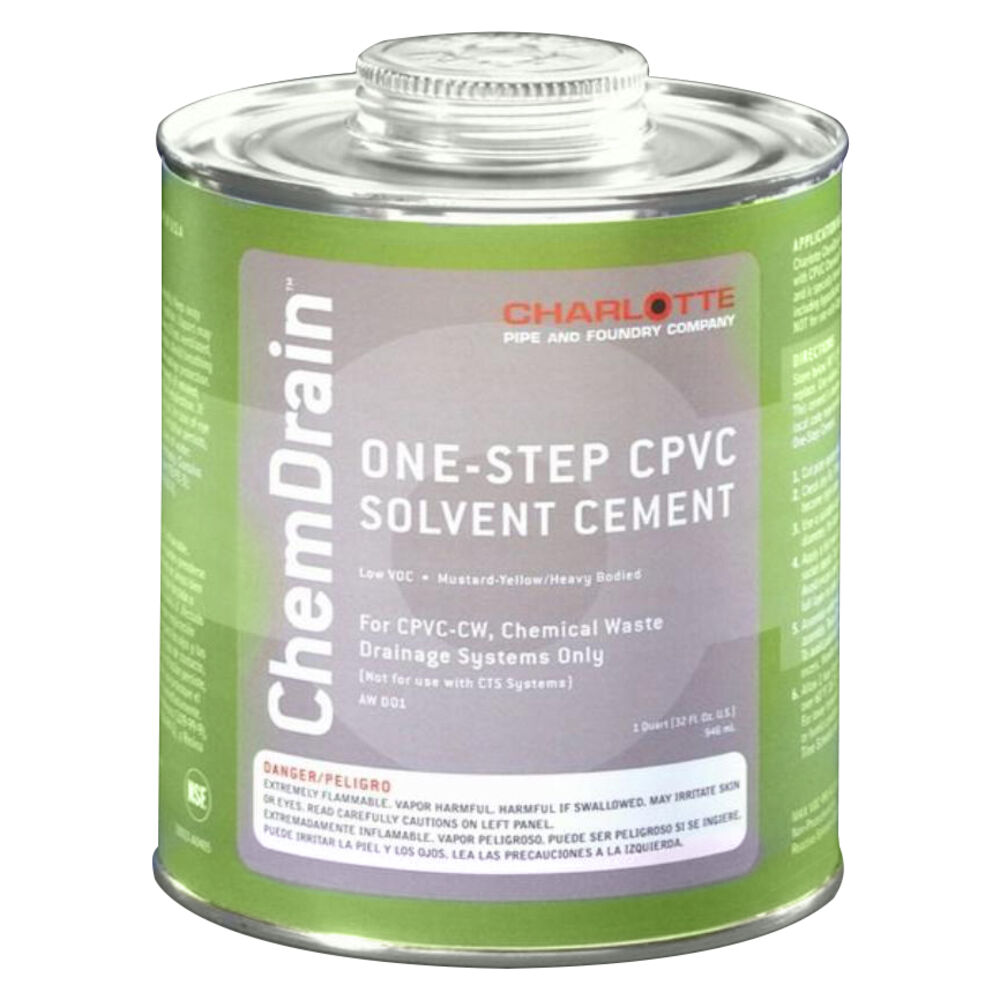

Cement solvent
Cement solvent
This proprietary solvent cement is made with Corzan®, the same material used to manufacture our Chem Drain pipe. It can be ordered along with your pipe and fitting order, or contact Primark at sales@primarkinc.com to order more.
Assembly instructions
Assembly instructions

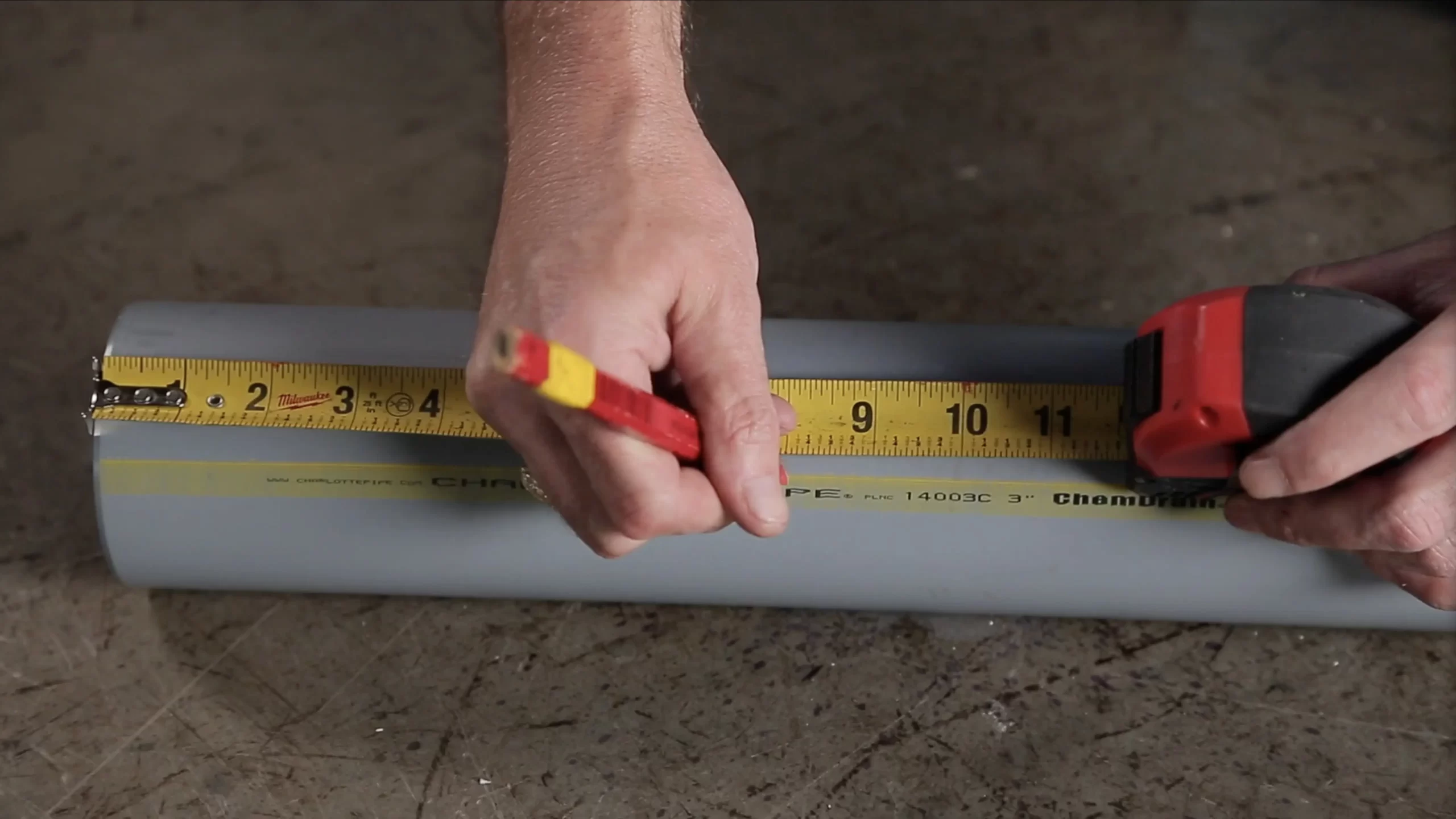

Step 1: Measure & Mark:
Measure and Mark where you want to make the cut with a tape measure and pencil

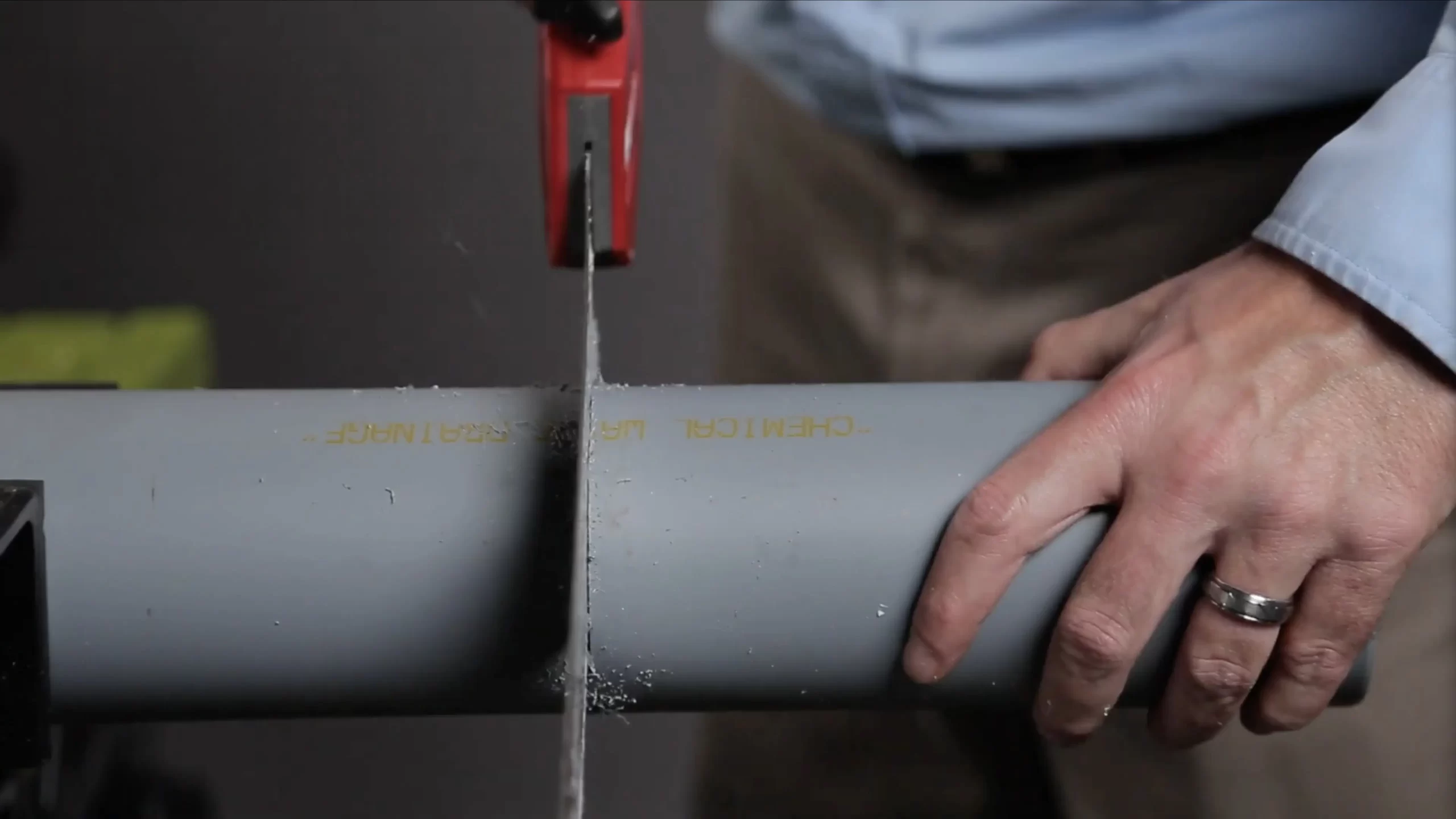

Step 2: Cut Pipe:
Cut the pipe square with the axis.You can use, a hand saw, miter saw, cut off saw & rachet cutter

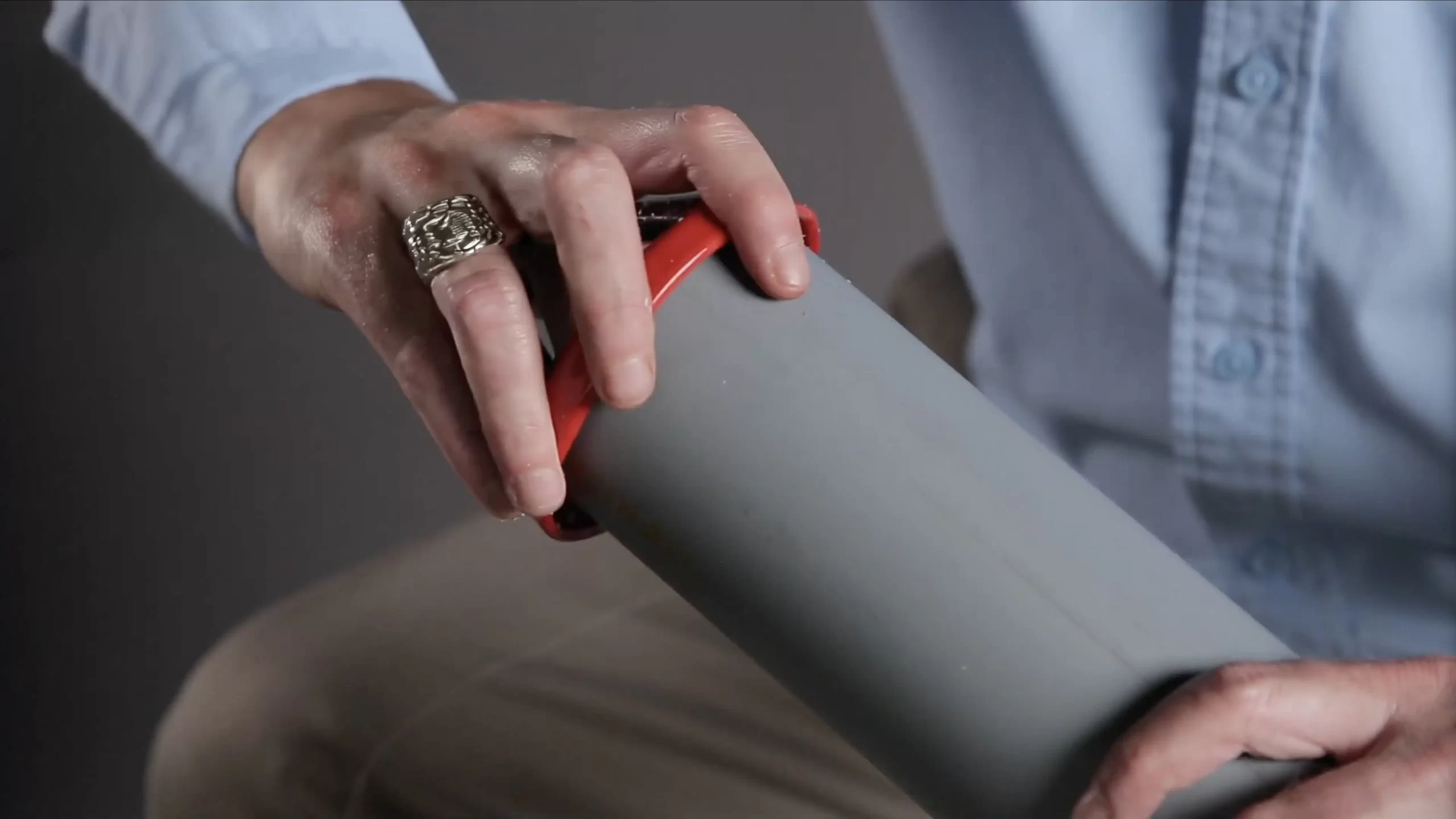

Step 3: Remove Burrs & Bevel:
Remove burrs and bevel edges to a 10 °-15 ° angle.You can use a knife edge, file or deburring tool.

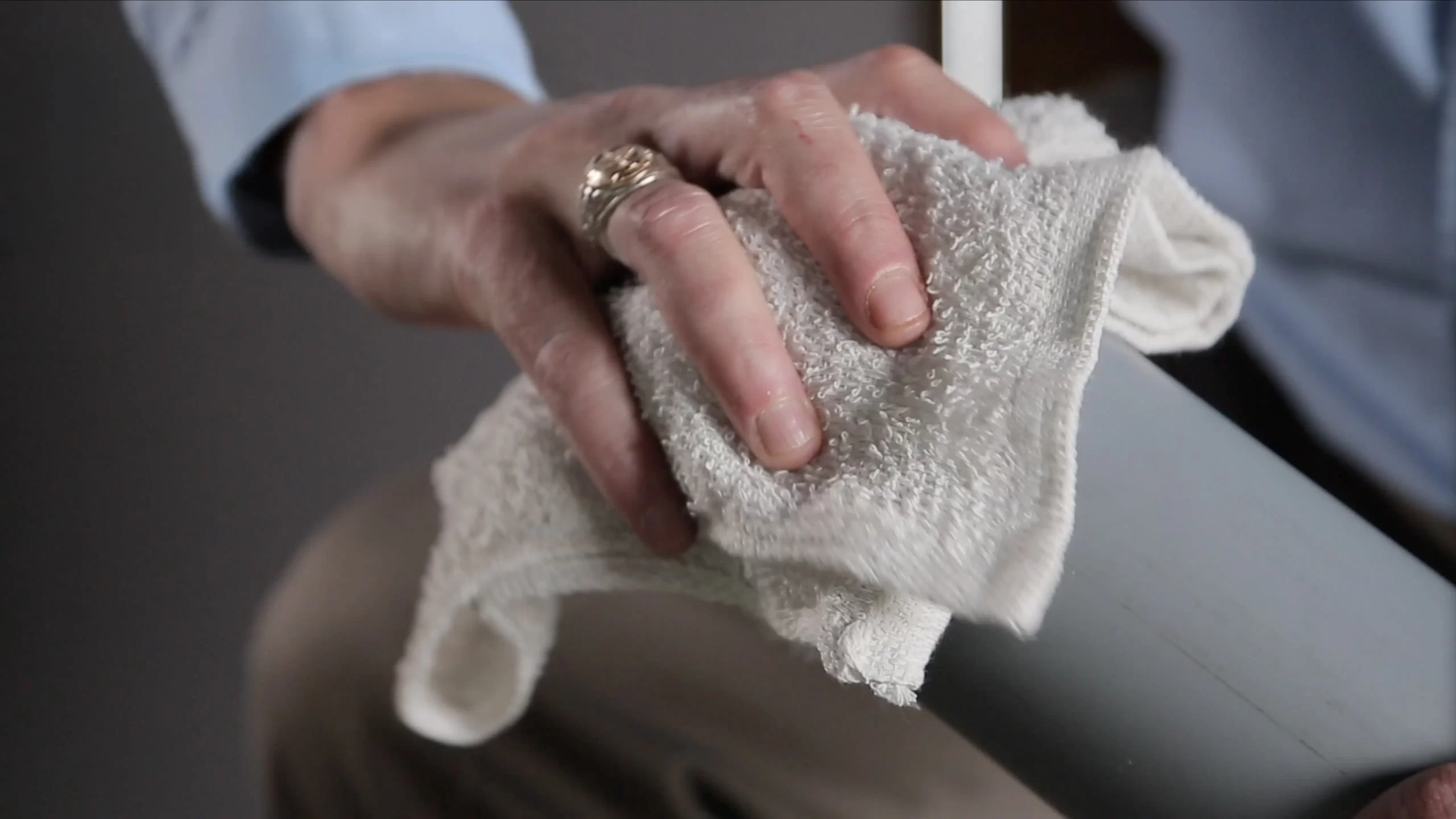

Step 4: Clean & Dry:
Clean and dry your pipes and fittings.

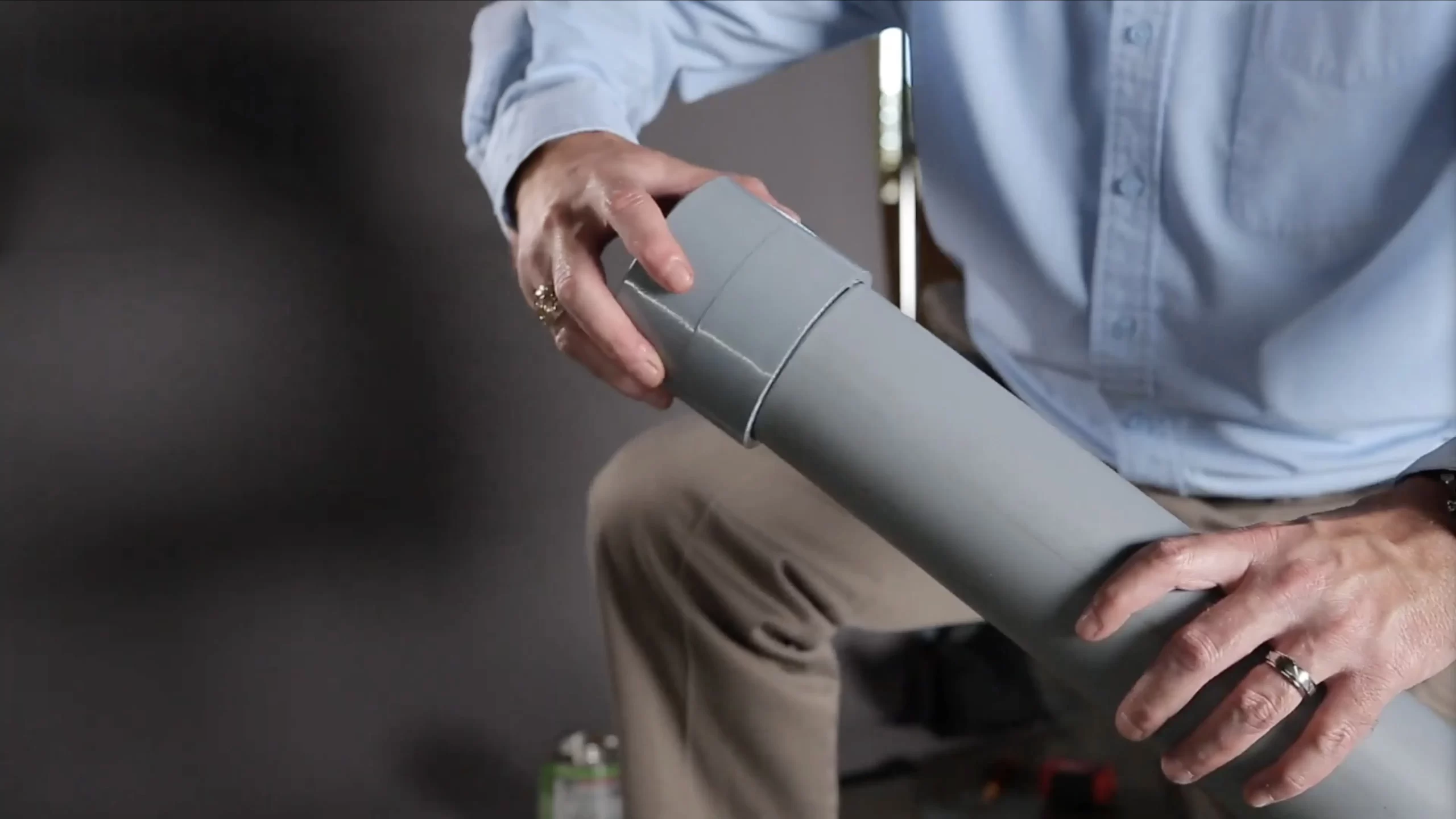

Step 5: Dry Fit:
With light pressure, the pipe should easily go in ½ – 2/3 of the way in to the fitting hub. Pipes that are too tight or too loose should not be used.

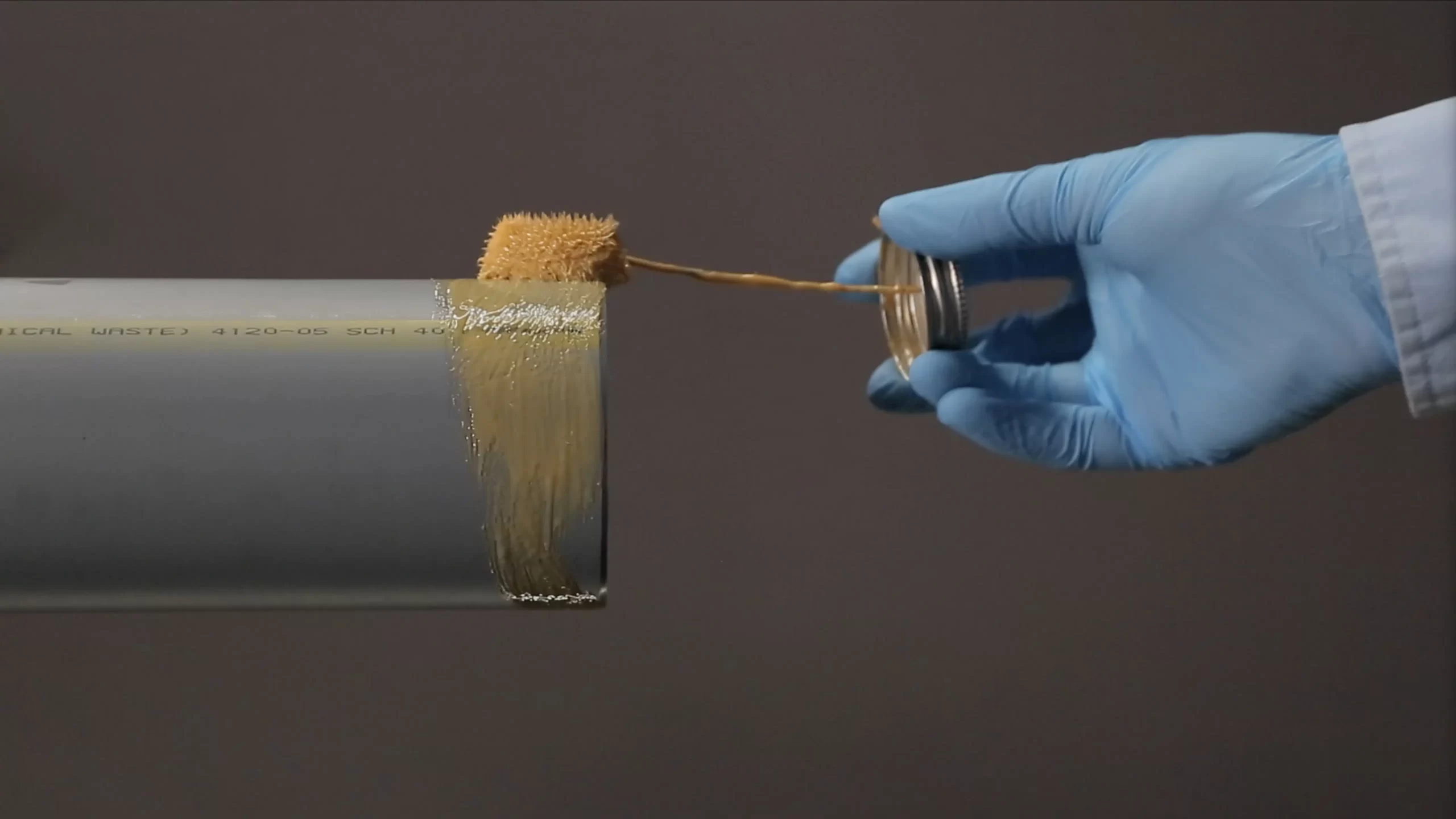

Step 6: Prime & Cement:
Unlike PVC, Chem Drain pipe does not require priming except for 6”-8” sizes or in wet, very hot or cold conditions. In this case a good primer is recommended to ensure a well bonded joint. Apply cement to 1 ½” beyond the hub depth and then to the fitting socket

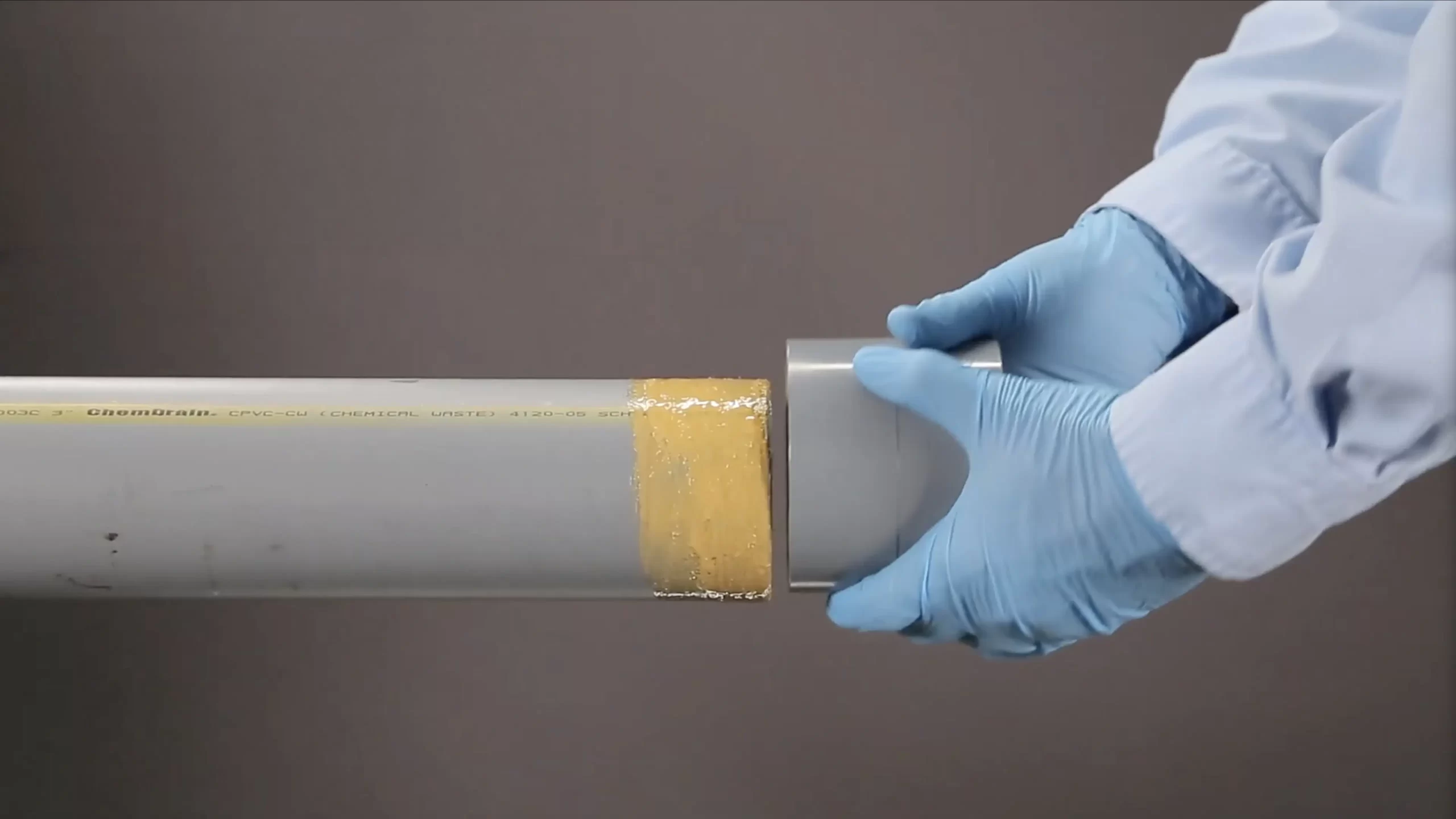

Step 7: Assemble:
While the glue is still fluid, insert the pipe into the hub using a quarter turn while the pipe is being inserted

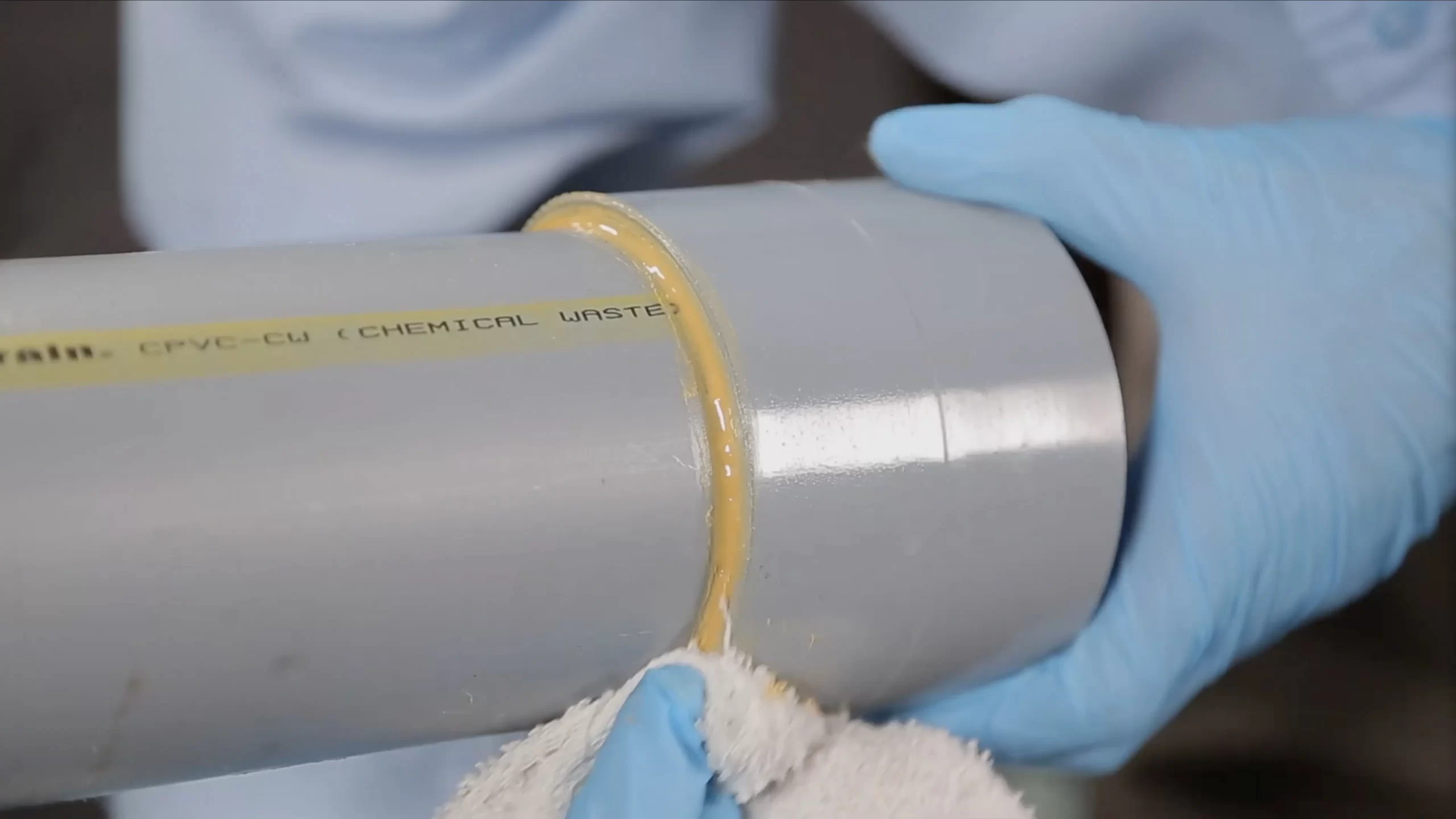

Step 8: Clean Up:
Remove any excess glue with a rag. You want to see a continuous bead of cement around the joint.
A reliable product
from a reliable company
& its now available in Canada

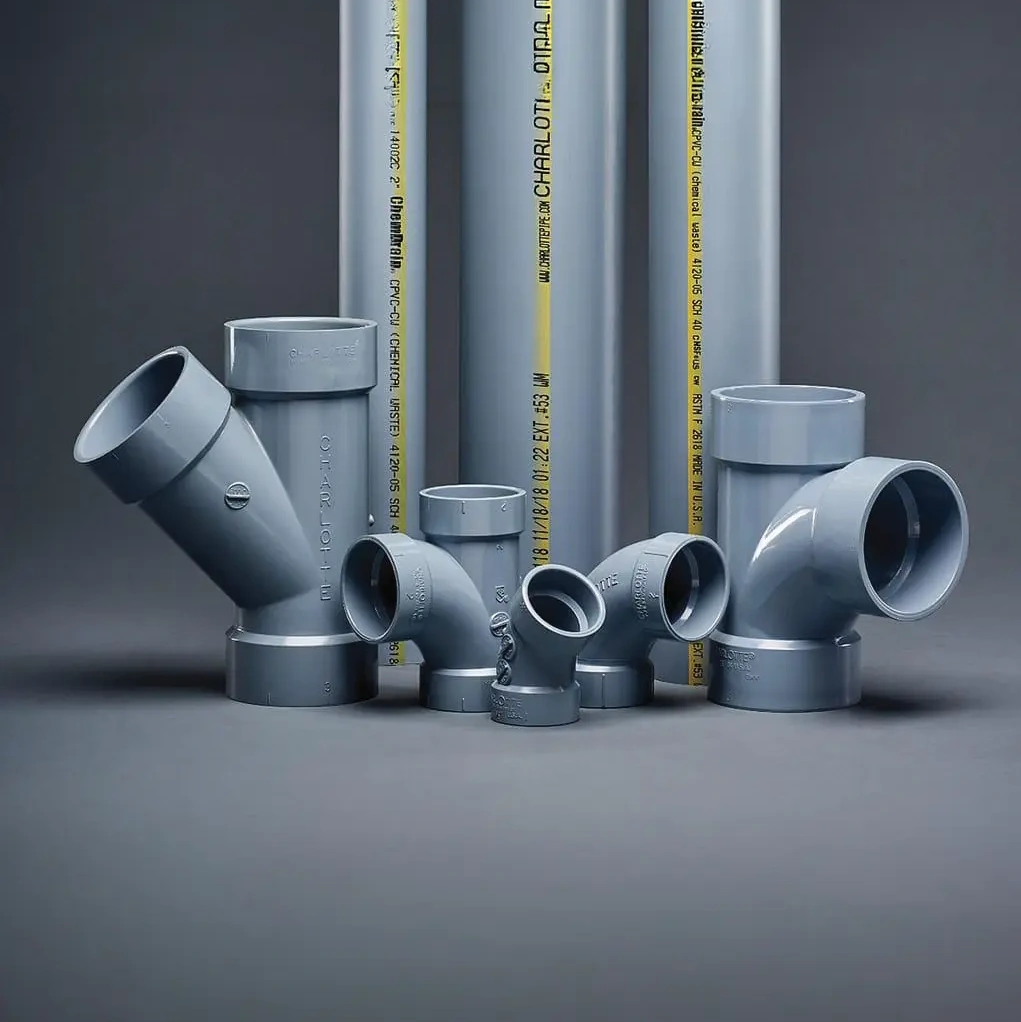

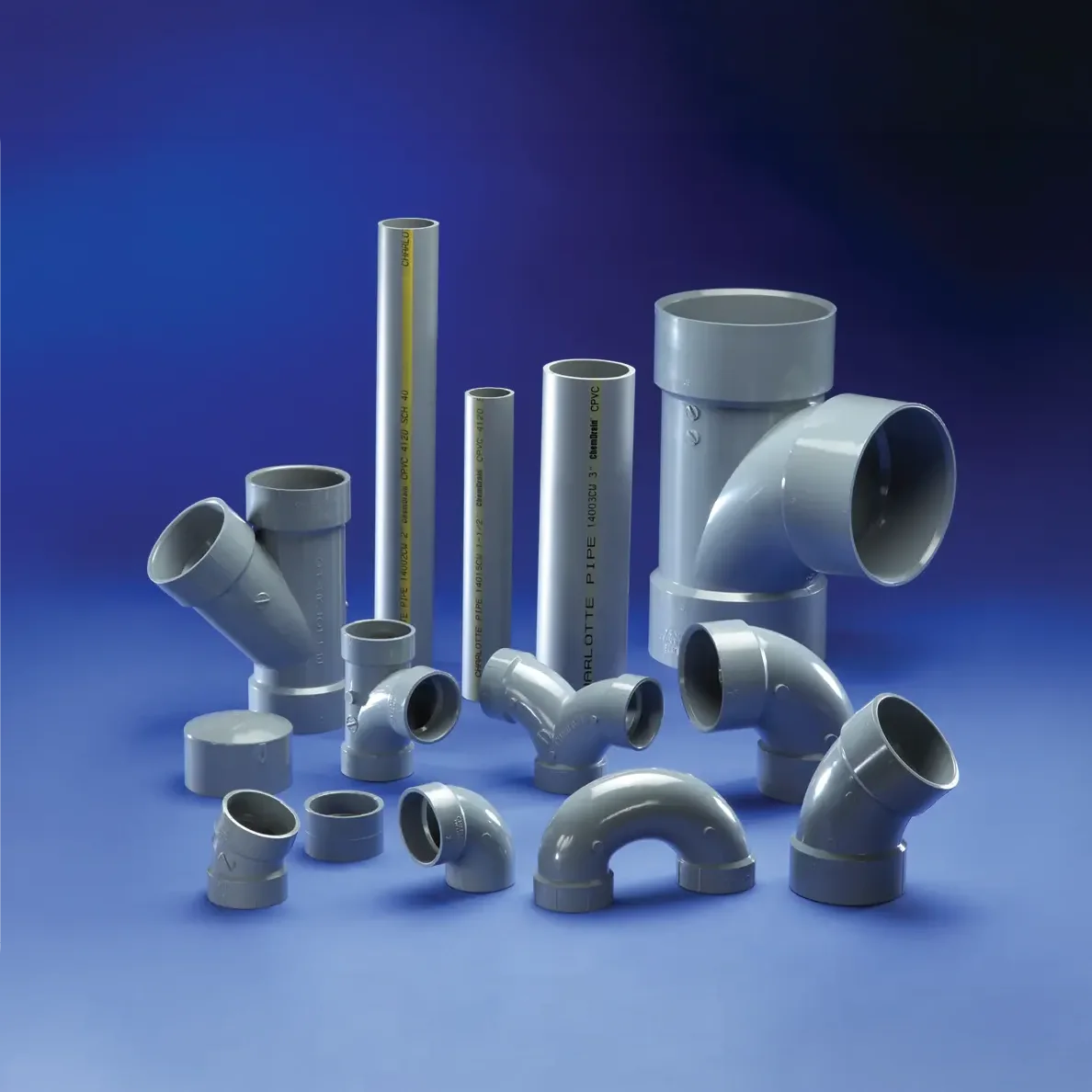

Product Description: With over 100 years’ experience supplying the highest quality products and service to the plumbing industry, Charlotte Pipe and Foundry’s ChemDrain® with Corzan® CPVC Chemical Waste Drain System offers a safe, durable and economical alternative for the disposal of acids, bases, salts and a wide range of organic media in institutional, academic and commercial laboratories. For more than 57 years, CPVC (chlorinated polyvinyl chloride) has been used in a variety of chemical-processing applications. Charlotte Pipe’s ChemDrain® CPVC pipe and fittings are manufactured with Corzan® CPVC compound and are specifically engineered for chemical waste drainage that will deliver years of reliable, problem-free service. Corzan® CPVC is the only CPVC material delivering market leading quality, reliability and performance for the most demanding applications.
Primark is now the Authorized Canadian distributor of ChemDrain®. We aim to make chemical waste disposal, safe, efficient, and cost-effective in Canada

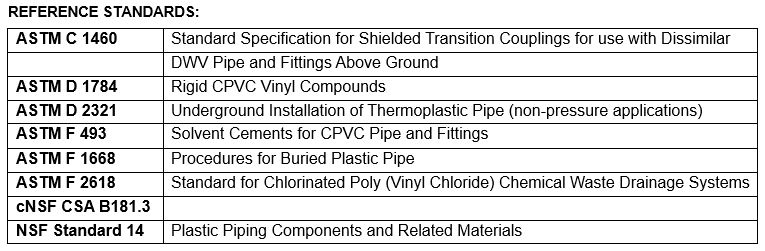

COMPLIANCE
Complies With: CSA to meet the B181.3 Standard for chemical waste disposal
Certifications

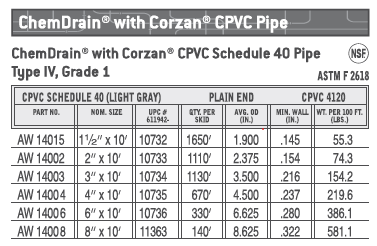

PIPE SIZING SCHEDULE
