Pipe Markers

Tie Strap

A man demonstrates how to apply the tie strap marker to a metal pipe. The man is pulling a zip tie to tighten the grip around the pipe. The marker is yellow with black text legend reads high pressure steam with an that points to the right
A man demonstrates how to apply the tie strap marker to a metal pipe. The man places the marker flat in front of the pipe with the zip ties facing down demonstrating how to apply. The marker is yellow with black text legend reads high pressure steam with an that points to the right
A flat yellow tie strap marker that reads "dom.hot water" in Black text with an arrow pointing to the right
A flat green tie strap marker that reads "chilled water return" in white text with an arrow pointing to the right
A flat red tie strap marker that reads "fire sprinkler line" with an arrow that points to the right
A flat yellow and green striped tie strap marker. The yellow strip is yellow and the legend reads "diesel" in Black letters with an arrow pointing to the right. The green stripe reads "low sulphur light"
A man demonstrates how to apply the tie strap marker to a metal pipe. The man is pulling a zip tie to tighten the grip around the pipe. The marker is yellow with black text legend reads high pressure steam with an that points to the right
A man demonstrates how to apply the tie strap marker to a metal pipe. The man places the marker flat in front of the pipe with the zip ties facing down demonstrating how to apply. The marker is yellow with black text legend reads high pressure steam with an that points to the right
A flat yellow tie strap marker that reads "dom.hot water" in Black text with an arrow pointing to the right
A flat green tie strap marker that reads "chilled water return" in white text with an arrow pointing to the right
A flat red tie strap marker that reads "fire sprinkler line" with an arrow that points to the right
A flat yellow and green striped tie strap marker. The yellow strip is yellow and the legend reads "diesel" in Black letters with an arrow pointing to the right. The green stripe reads "low sulphur light"

For bigger pipes, without requiring a bigger budget.

Product Description: Primark Tie-Strap Pipe markers are made from rigid PVC vinyl with 20mil thickness. Manufactured for application with included tie-straps for larger piping. Tie-strap markers are suitable for temperatures of -40°F to 160°F. Sizing for tie-strap markers range from 6″ diameter to 18″ and over. Tie-Strap markers are shipped with 36″ Tie-Straps for application and mounting.

Complies With: ASME A13.1 “Scheme for the Identification of Piping Systems” CAN/CGSB-24.3-92 and ANSI A131-1981 colour coding schemes.

AVAILABLE SIZE

(OVERALL DIAMETER)

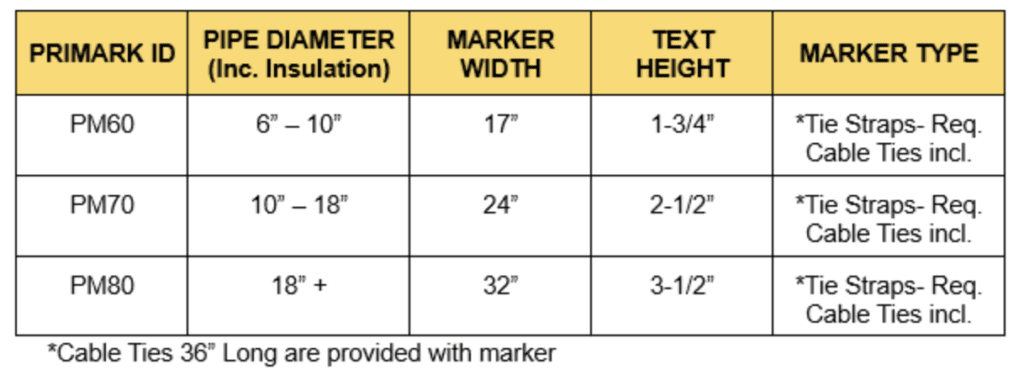

A five column by three row chart showcasing the Primark ID code, pipe diameter, marker width, text height, and marker type for tie strap markers.

Common Colors

A seven row by two column chart showcasing the common colors and legends for the most popular kinds of pipe markers

For order inquiries or general questions, feel free to give us a call or Send us an email.

Download shop drawing
Download order form LSX
Download bilingual order form LSX
